LG 88ZN 88-inch 8K OLED calibration results

Readers interested in a deep dive of the calibration results from our review of the $30,000 LG 88ZN will be interested in these calibration results. Click here to read our in-depth review of the LG 88ZN.

In the Cinema picture mode, the SDR pre-calibration measurements were pretty good, with dE2000 errors well below 5 for grayscale and color.

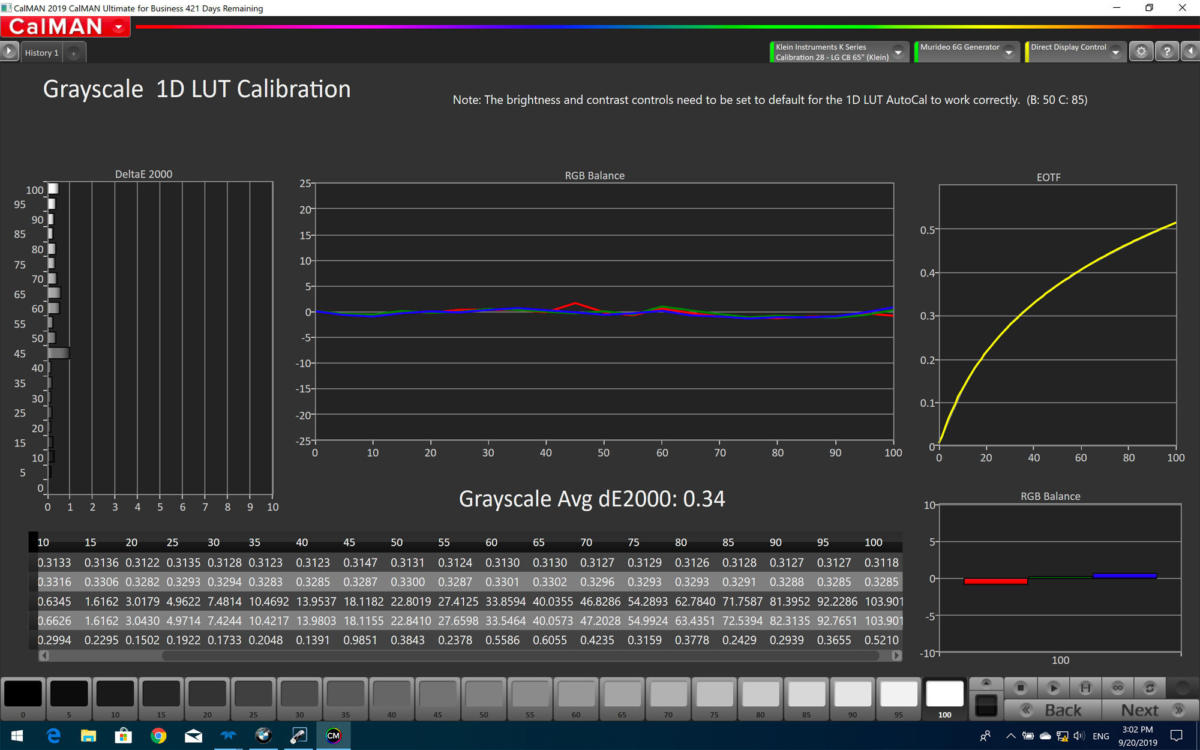

After a full 22-point SDR grayscale calibration, the measurements were excellent, with an average dE2000 of only 0.34.

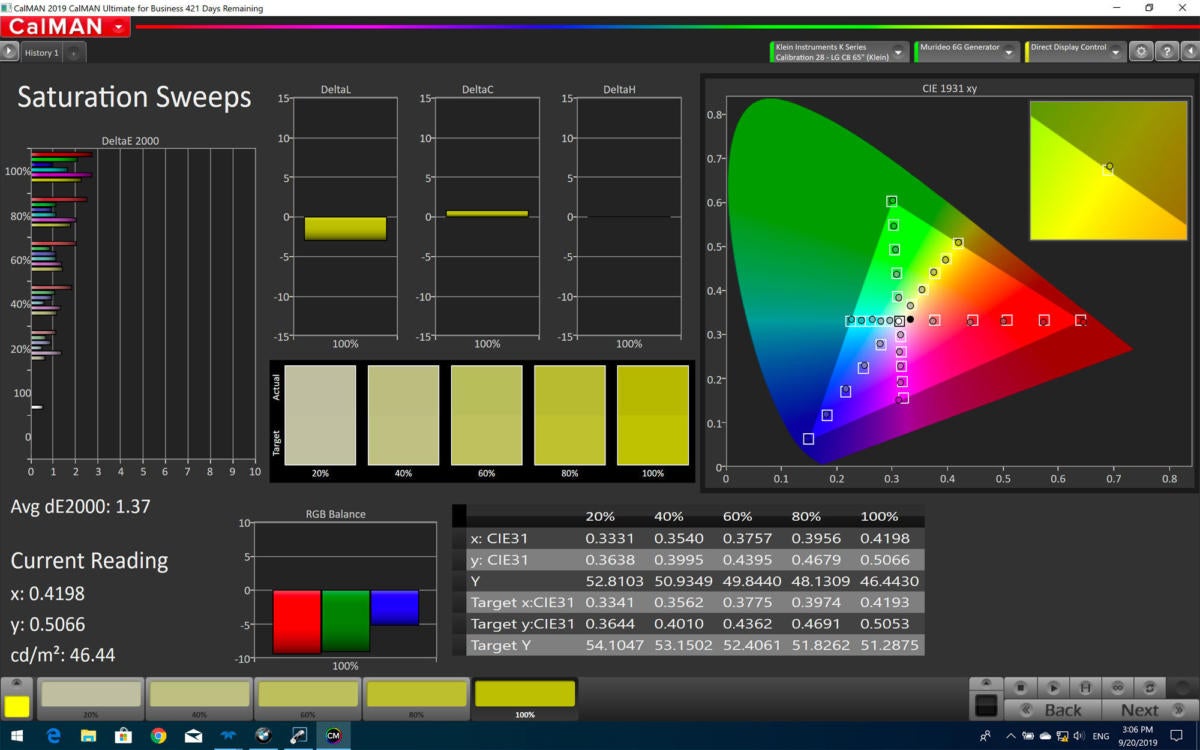

Even though I didn’t perform a color calibration, the color measurements were quite good, with an average dE2000 of 1.37.

The ColorChecker function in CalMan shows that the 88Z9 did quite well with a variety of colors, with an average dE2000 of 1.5 and a maximum dE2000 of 3.7.

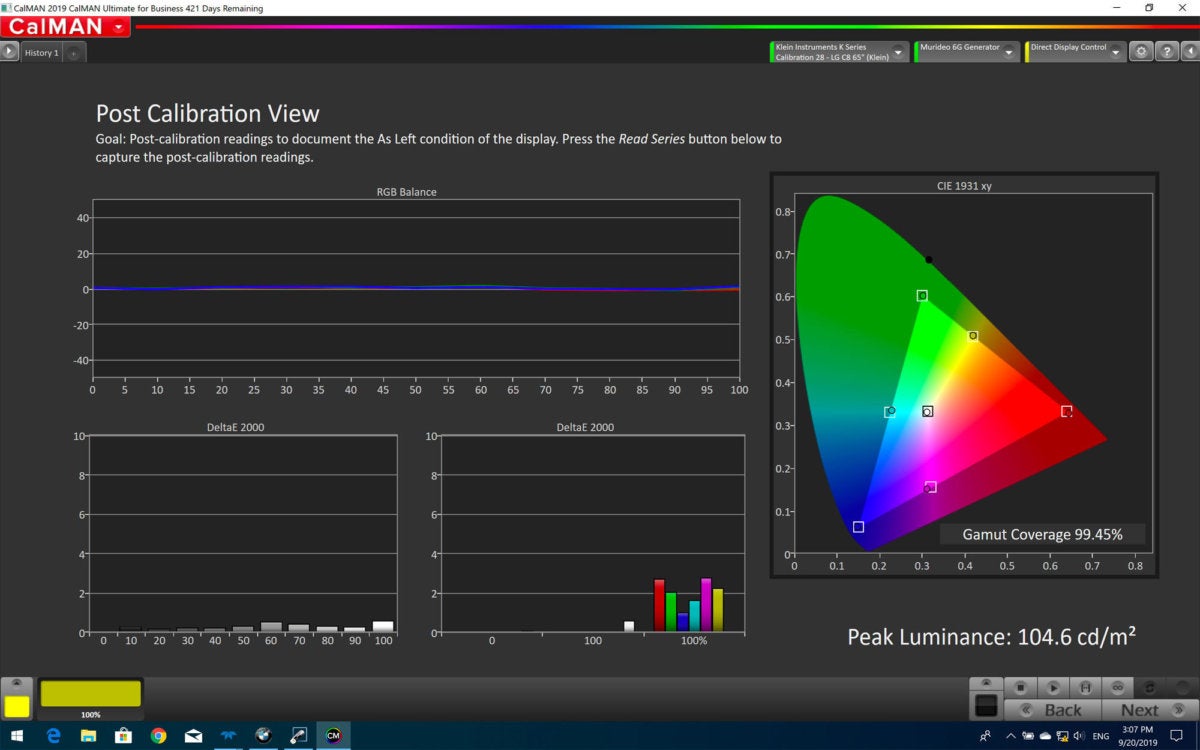

The SDR post-calibration view shows a very well-behaved display.

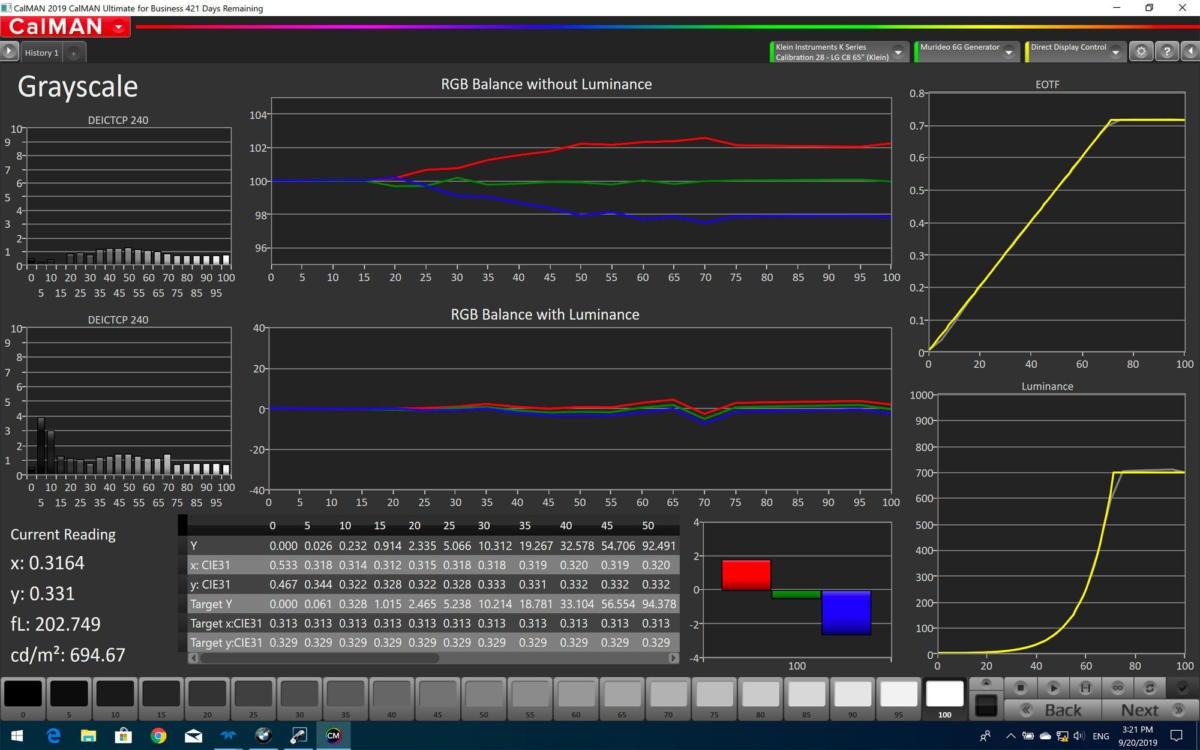

I didn’t calibrate the 88Z9’s HDR mode, but I did measure it. Here we can see that, without compensating for OLED’s luminance error at high brightness, the grayscale is increasingly deficient in blue with an overabundance of red. Adjusting for the luminance error, the grayscale is close to perfect. Notice that the EOTF and Luminance curves follow the targets very closely all the way up to the set’s maximum luminance, where they sharply flatten out.

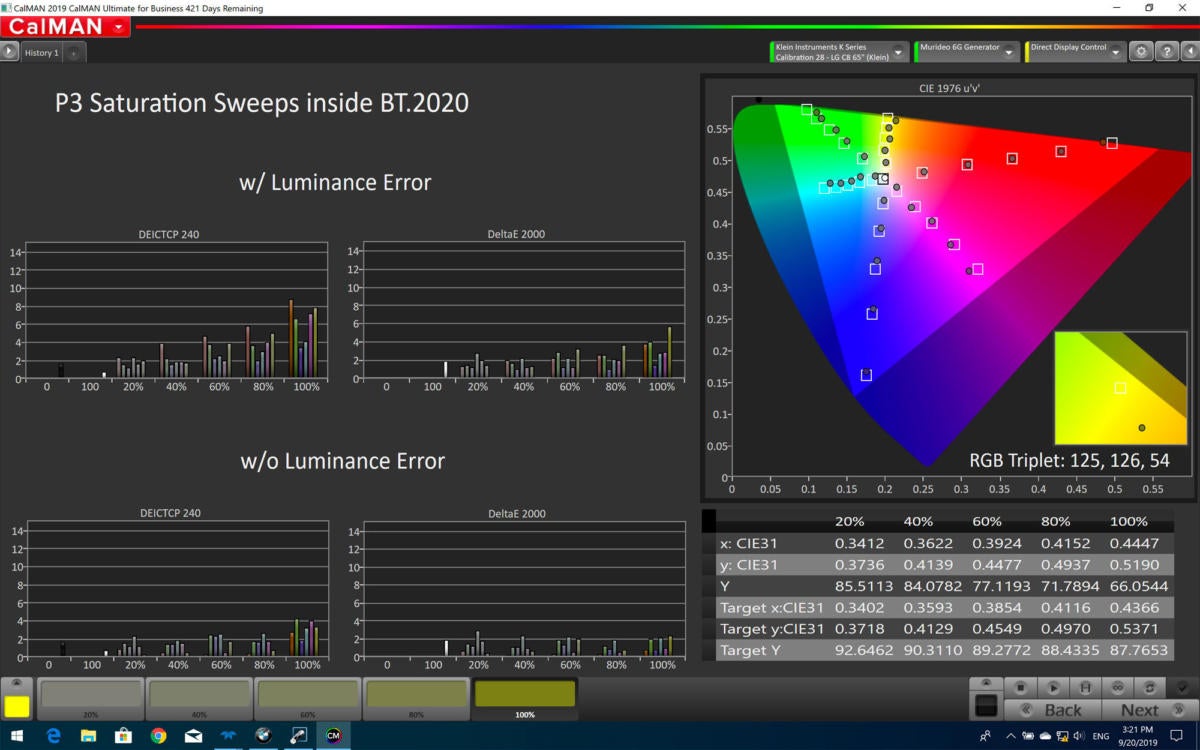

The saturation sweeps in HDR reveals that the primary and secondary colors hit their targets at different saturation levels pretty well. If the luminance error is included in the calculations, the dEICtCp errors increase with brightness, as expected. Without considering the luminance error, things are much better.

The colors measured by the ColorChecker function are mostly very close to their targets.

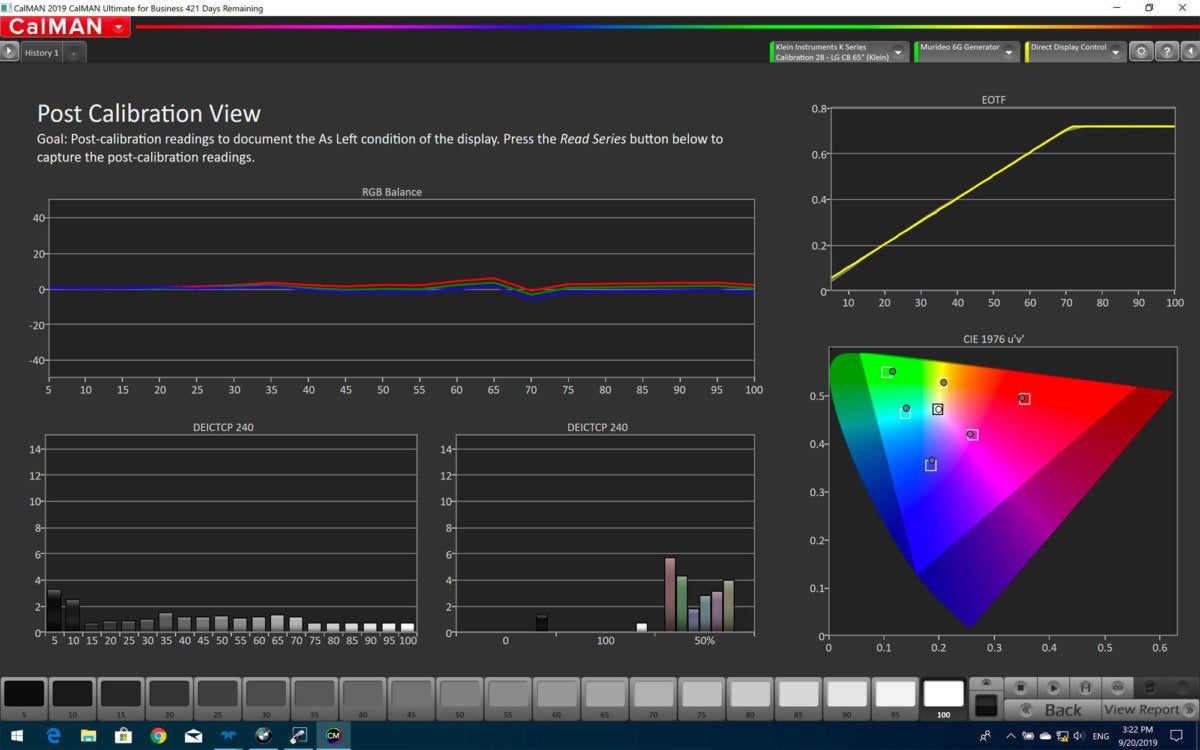

Even though I didn’t perform an HDR calibration, I shot the post-cal view anyway. Aside from the 5- and 10-percent brightness levels and a couple of colors, everything was close to perfect.
