Less-expensive than many single-function range extenders
Can pull in broadcast TV channels from as much as 65 miles
Range extender clients can’t access data stored on router clients
Can be touchy when tuning-in TV channels
The Trinity Xtend’s inability to allow range extender clients to stream data stored on devices connected to the router is a major shortcoming.
Note: TechHive contributor Jason Cipriani and TechHive executive editor Michael Brown collaborated on this review. Jason evaluated the Trinity Xtend’s performance as a TV antenna, and Michael measured its chops as a Wi-Fi range extender.
Before you cut the cord, you need to figure out two things: How you’re going to tune in local over-the-air TV channels, and how you’re going to stream TV, movies, and other video content over your network to your TV.
Terk offers one product that it says can resolve both questions: Its Trinity Xtend is both an amplified indoor digital TV antenna and a Wi-Fi range extender. Connect it to your TV and it will pull in those local channels and eliminate the dead spots that have prevented you from streaming video to your TV. Great idea, right? Well….
The Trinity Xtend ($89.99) looks very much like the standard Terk Trinity with an extra pair of antennas. It can be hung on the wall or rest on a flat surface, and its articulated antennas can be oriented accordingly. Three blue LEDs indicate the presence of power, a connection to your Wi-Fi router, and network activity. This is an 802.11n range extender, so it will connect only to your router’s 2.4GHz radio. Terk also offers a dual-band 802.11ac range extender, the $129.99 WITRIAC, which we have not reviewed.
Thanks to its inline amplifier, the Trinity Xtend rated to receive over-the-air signals from up to 65 miles away. That’s the longest range of any indoor antenna I’ve tested so far. You can flip a switch to disable the amp, but you’ll still need AC power for the range extender, so I suggest you leave the am powered for the best reception. The antenna is capable of receiving 1080-resolution signals, and is ready for whenever networks start broadcasting in 4K.
The antenna is very easy to set up, but you’ll need Terk’s free app (available for Android and iOS devices) to configure the range extender. Plug the Xtend’s wall wart into an AC outlet, connect the coax cable to your TV’s antenna input, and put your TV into channel-discovery mode. I was impressed with my results: The TV found 25 of the 32 broadcast channels available in my area. HD channels came in clear and without interference, and the remaining channels also showed up without issue. More than satisfied with the Xtend’s performance as a TV antenna, I then packed it up and sent it to Michael for Wi-Fi testing.
Range extender performance
To configure the Trinity Xtend as a range extender, you need to open your smartphone’s Wi-Fi settings and scan the airwaves for the Trinity Xtend (you’ll find the Xtend’s network name and password printed on the bottom of the antenna). The app will help you connect the range extender to your Wi-Fi router’s network (you’ll need its SSID and password as well). Once I’d connected the Xtend to my Linksys WRT1900AC router’s 2.4GHz Wi-Fi network, I proceeded to connect my laptop to the Trinity Xtend. I opened a web browser on my laptop and was able to get on the internet. So far, so good.
My next step was to perform some benchmarks, measuring TCP throughput between the laptop and another computer on the network. But I quickly discovered I couldn’t reach the laptop connected to the range extender from any computer connected to the Linksys router.

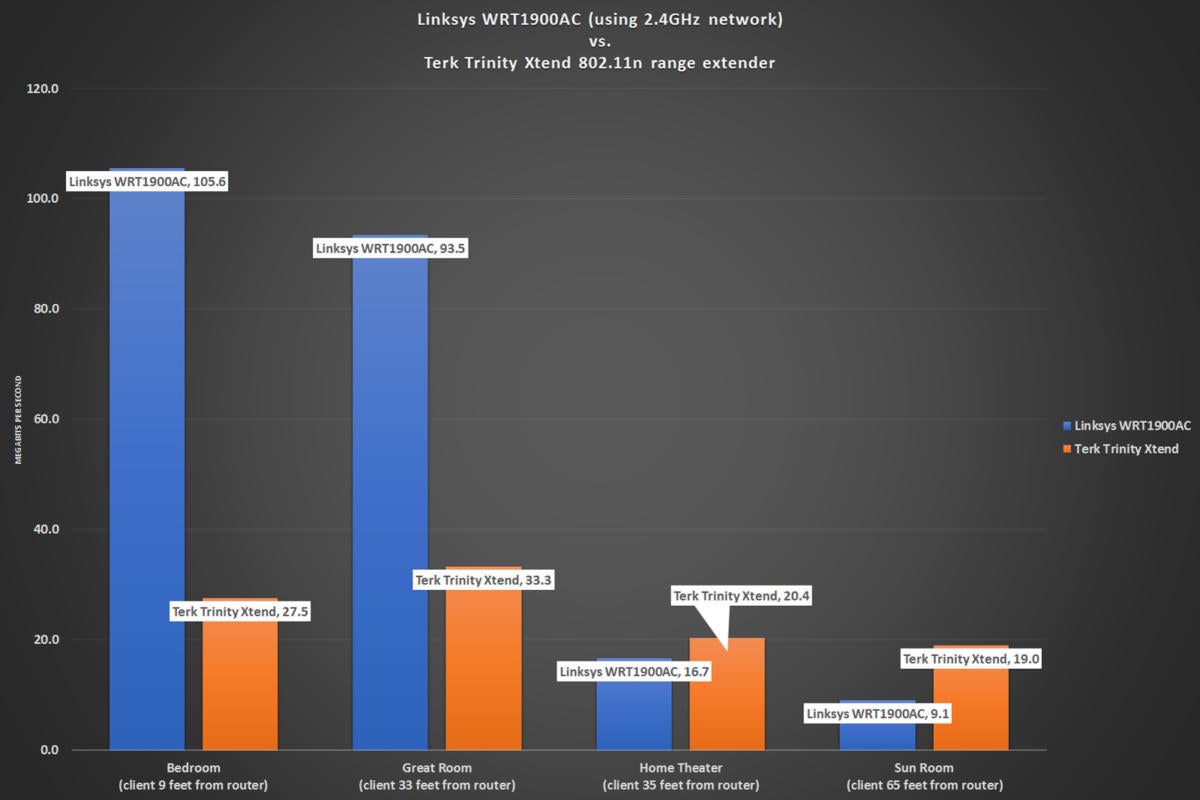

I called Terk for help and was informed that a computer connected to the range extender should be able to exchange data with a computer connected to the router as long as the range extender client initiates the communication session. So I was at least able to measure TCP throughput between a client connected to the extender and a server connected to the router. As you can see from the chart below, those results aren’t terribly impressive. I’m still waiting to hear why Terk thinks the range extender client can’t access files stored on computers and NAS boxes connected to the router.
No one would connect a client to a range extender in another room when the alternative is to connect the client to the router in the same room, so my first benchmark result somewhat meaningless. When the client is in the great room, on the other hand, it’s much closer to the range extender than it is the router—and yet TCP throughput was three times faster when the client was connected to the more distant router.
Things turned around a bit when I moved the client into the two rooms further away from the router. TCP throughput was a little faster when the client was in the home theater, and it was more than twice as fast when the client was in the sun room. Still, 20.4- and 19.0Mbps respectively is nothing to write home about.
The much bigger problem, of course, is the inability of a PC connected to the range extender to access files on computers or storage devices that are connected to the router. If all you want to do is stream content from the internet, this TV antenna/range extender might meet your needs. But you know the minute you settle for that restriction, you’re going to regret it.
