Network-attached storage (NAS) is just the ticket for storing and streaming your own videos, music, and digital photos around the house and even across the world. It can be just like Spotify, YouTube, or Netflix, except with your own media.
NAS is also immensely handy for backing up and synchronizing the data on your computers and mobile devices. Backing up to local storage is much faster than relying on a cloud service such as DropBox or OneDrive, and the same goes for restoring an accidentally deleted file or recovering from a crashed system.
It’s also easy to set up a NAS box to function just like those cloud services, enabling access from anywhere in the world. In fact, NAS box builders have taken to calling their products “private clouds” in an effort to make the concept more familiar to consumers.
To get the best of both worlds, most boxes will sync with cloud storage services, providing another layer of data redundancy and disaster-recovery options. If you experience a disaster at home—a flood, fire, or earthquake—you’ll at least have the peace of mind that comes with knowing your data is safely backed up at another physical location.
A word on pricing: Outside of Seagate and WD, NAS box vendors don’t manufacture hard drives, and sell their boxes “unpopulated;” i.e., without any hard drives installed. When you’re comparing prices, make sure you know whether or not the drivers are included. If you’re not familiar with formatting a hard drive or setting up an array of drives, you might find it more convenient to buy a NAS box that’s populated and ready to go right out of the box.
The price tag is intimidating, but there is no better solution for streaming media, including 4K UHD video directly to a smart TV via HDMI 2.0. This box will also make an ideal Roon server, thanks to its capacity to support an SSD for the Roon Core in addition to hosting a pair of 3.5-inch hard drives for your media files. If you have the network infrastructure to take full advantage of it, you’ll be able to transfer files in a flash thanks to its support for 10Gbps ethernet (10GbE). On top of all that, the chassis is passively cooled (no fans) for near-silent running.
The two-bay Asustor Nimbustor 2 (model number AS5202T) knocked our socks off with its price-to-performance ratio. Selling for just $299 at the time of our review, it boasts dual 2.5GbE ports that support link aggregation, a fast Intel Celeron CPU, 2GB of DDR4 memory, and an HDMI 2.0a port, so you can connect it directly to a 4K TV and stream all your favorite archived movies. This one will be hard to beat.
How we tested
Speaking of testing, here’s how we benchmarked them. Each box was mapped under Windows 10 on a faster Core i7-5820 system with NVMe SSDs and then benchmarked with CrystalDiskMark 6. Additionally, backups of 40GB of data aare performed to check real-life throughput against the benchmark. We streamed 1080p—and where possible, 2160p—video files to multiple client devices, including two second-generation iPads, the test PC, two Android phones, and a Windows Phone. A DLNA media server was used whenever possible; when it wasn’t, we used Plex Media server and the relevant client app.
Each of the boxes reviewed here proved capable of delivering data fast enough to stream 10-bit color, 2160p (4K UHD) video at 60 frames per second. A box that can do that, can easily stream 720p and 1080p video to multiple devices. That means that streaming performance was basically a non-issue for these drives, though we’ve noted where a particular box was outstanding.

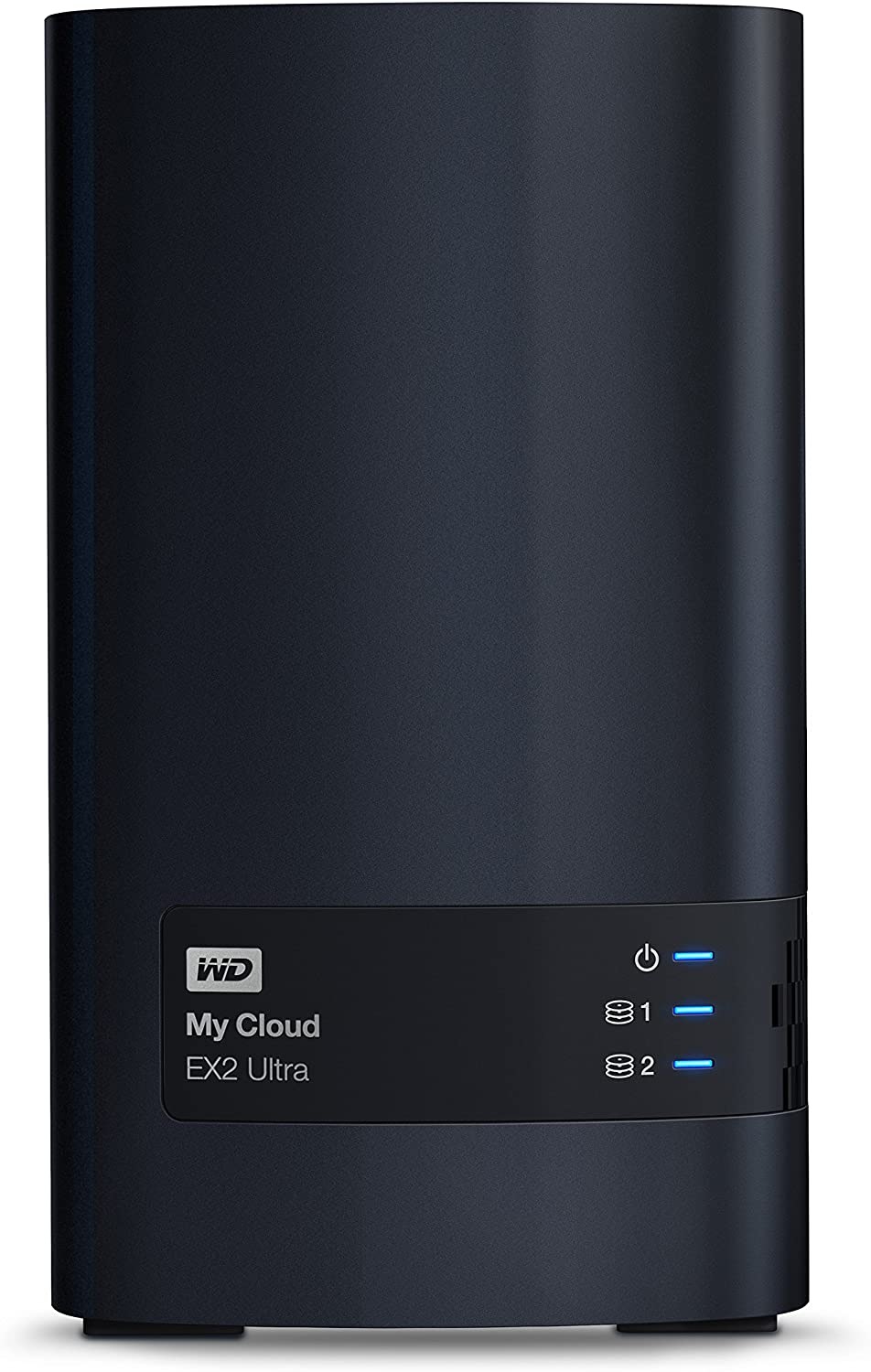

Adequately fast backup and synchronization was another baseline that each of the boxes met, though some were considerably faster than others. The WD My Cloud EX2 Ultra, Netgear ReadyNAS 212, ZyXel NAS520, and TerraMaster F2-220 all topped 100MBps writing data sequentially. The QNAP TS0251a, Seagate Personal Cloud, and Synology DS216play did not. The Seagate, at such a low price, was no surprise, but QNAP and Synology have a rep for speed. These are not the company’s fastest boxes.
Regardless, only initial backups or synchronization tend to be time consuming, so subsequent partial backups will be relatively quick even on the slower boxes. Each of them should handle backups for four or five PCs and all the mobile devices you can throw at them.
Features to look for when shopping for a NAS box
There are generic features you’ll find on anything wanting to call itself a NAS box these days, including: support for an administrator and multiple users, support for SMB (Windows) and AFP (Apple) network protocols, and a configuration interface accessed via a Web browser. Nearly all NAS boxes are based on some form of Linux and most offer a plug-in, or app architecture to add less common features.
But there’s an array of features that vary in quality and abundance that you should inspect before you make your decision.
Backup You can always map your NAS box as local drive and back up to it the way you would a USB drive, but most NAS boxes have features that are considerably more powerful and automated. Look for FTP for simple backups, TimeMachine support for backing up Macs, and Rsync for syncing with other NAS boxes. Some manufacturers offer their own proprietary server/client app solutions, such as QNAP’s QSync.
Card reader An SDHC or similar card card reader on the front of the NAS box can be handy for copying media files to the box from cameras or recorders.
Cloud service connectivity Like backup, being able to sync your files with online services such as DropBox, OneDrive, Google Drive, et al is super handy and allows access to your files when you don’t have an internet connection.
DLNA media server Nearly all PCs and most multimedia devices can play media streamed from your NAS box via DLNA, although they might require a client app to do so. Nearly every NAS box comes with a DLNA server these days, but check the one you’re buying to be sure. Plex is a popular option these days as well, and in some cases supplanting DLNA. See below.
Dual ethernet ports A NAS box that supports port aggregation (i.e., using multiple ethernet ports to send and receive data) will deliver significantly higher throughput over your network—but generally only if they’re connected to a router that supports the same feature, and those are rare in the consumer market (Netgear’s Nighthawk X10 is one of the few). The one exception we’ve come across are Asustor box’s whose “round robin” function increases performance with any router or switch.
Gigabit ethernet You can back up and stream 1080p to a couple of devices over 10/100 ethernet with no problem. Gigabit ethernet will support more and it will ensure smooth streaming of 4K UHD (2160p) video, not to mention faster backups. But every component on your network must be gigabit capable—the NAS box, the router, the computers, and any switches in the data path—must support gigabit ethernet, too. Be sure to use CAT5e or higher ethernet cable, too.
2.5 Gigabit ethernet Abbreviated 2.5GbE, this network standard does just what you’d think—it delivers data transfers over your network at speeds up to 2.5 gigabits per second. The same qualifiiers mentioned above for gigabit ethernet apply: Your router, switch, and other network components need to also support 2.5GbE to take full advantage. If your client PC has only a gigabit network card, you can use a USB-C-2.5GbE adapter to get around that bottleneck.
10 Gigabit ethernet You get the idea: 10GbE delivers data transfers over your network at speeds up to 10 gigabits per second. The same qualifiers mentioned above apply, but you’ll need a CAT6a cable to achieve that speed.
Multiple drive bays Two bays allow you to mirror two drives (RAID 1) to protect your data via redundancy (RAID is an acronym for Redundant Array of Independent/Inexpensive Discs). Alternatively, or in conjunction, you can attach a USB drive to keep the box backed up. How important this feature is depends on how important the data you store on the drive is. A NAS box with four or more bays will enable you to run more sophisticated RAID level, such as 5, 10, etc.
PCIe slot A NAS box with a PCIe slot can be expanded with add-in cards that add more features and/or performance. Examples include expansion cards that can host an SSD, a 10GbE network adapter, or a USB 3.1 Gen 2 USB port that can deliver speeds up to 10Gbps.
Plex Media Server Because certain companies such as Apple don’t support DLNA, Plex has stepped in with its own streaming solution and client apps for every mobile device and operating system in the universe ((well, it certainly seems that way). Those clients it doesn’t support can still play media from within a browser. Plex is slick and nearly universal, but it’s not as transparent as DLNA.
Populated or unpopulated Consumer-oriented NAS boxes from Seagate and WD generally include drives; brands targeting enthusiasts, small businesses, and the enterprise typically don’t. Populated boxes are largely a convenience for people who aren’t comfortable mounting and formatting drives (it’s a snap, really).
Quick-copy button A button on the front of the NAS box that quickly copies media files from USB or a card slot can be handy if you’re constantly off-loading photos and video from you camera or recorder—provided you leave your box in an easily accessible location.
Remote access All NAS boxes allow remote access to your files, but some make it easier by allowing you to connect through the company’s web portal, and/or automatically configuring your router with the appropriate port-forwarding information.
USB You’ll be hard-pressed to find a NAS box without a USB port for loading or saving/backing up files. But USB 3.0 is faster, and multiple ports allows adding devices such as printers, webcams, and even the TV tuners that some boxes support.
Video transcoding Many NAS boxes employ CPUs that offer hardware-assisted video transcoding; that is, altering the dimensions and bit rates of the original video before streaming it. This can lessen the strain on destination devices such as phones that don’t have the horsepower to do it on their own. Note that transcoding may not work via DLNA, but only with the playback apps that some NAS vendors offer.
Jon Jacobi is a musician, former x86/6800 programmer, and long-time computer enthusiast. He writes reviews on TVs, SSDs, dash cams, remote access software, Bluetooth speakers, and sundry other consumer-tech hardware and software.
