- Superb overall sound quality
- Expansive soundstage in front of room
- Exceptional bass without a separate subwoofer
- Built like a tank
- Didn’t create a fully immersive soundfield in my room
- Supplied calibration mic failed, required replacement
- Input auto-switching doesn’t work
- App disconnects from soundbar when phone falls asleep
- Super expensive
Superb sound for a princely sum, but it doesn’t create a true immersive soundfield as it claims—at least, not in an imperfect room.
Price When Reviewed
Best Prices Today: Sennheiser Ambeo Soundbar
A soundbar is an attractive alternative to a full-blown outboard speaker system. It offers better sound quality than a TV’s built-in audio, and it’s much more convenient to set up and use. On the other hand, a soundbar can’t reproduce a fully directional surround or immersive soundfield like a system with separate speakers located around the listening area.
Or can it? That’s the goal Sennheiser set for itself with its Ambeo Soundbar. This high-end behemoth sits near the top of the soundbar price range and claims to reproduce a virtual 5.1.4 immersive soundfield—a claim that has some merit, though it never fooled me into thinking I was listening to an actual immersive multi-speaker system.
Updated April 23, 2021 to report Sennheiser has released a firmware update for the Ambeo Soundbar that adds support for Sony’s immersive 360 Reality Audio technology. We returned our review unit shortly after this review was published, so we won’t be able to evaluate the new feauture, but we wanted our readers to know about it.
Ambeo feature set

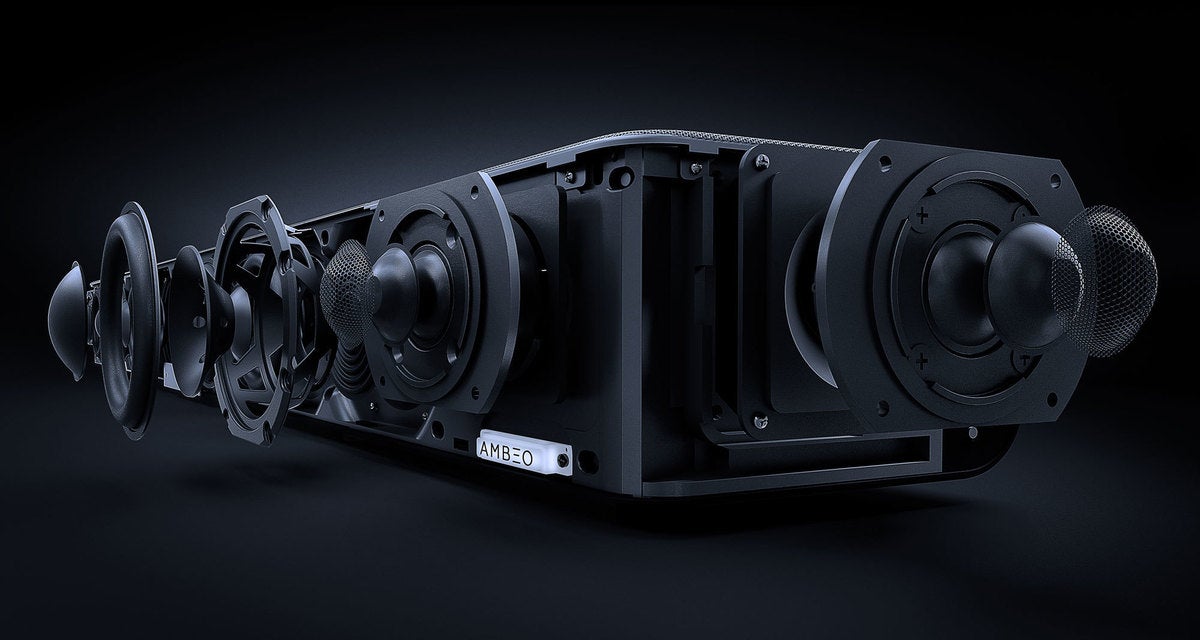

The Sennheiser Ambeo Soundbar is massive, measuring about 50x5x7 inches (WxHxD) and weighing almost 41 pounds. It sports a total of 13 speaker drivers—six 4-inch long-throw, cellulose-sandwich cone woofers, five 1-inch aluminum-dome tweeters (two of which fire to the sides at an angle), and two upfiring 3.5-inch full-range drivers powered by a total of 500 watts. The frequency response is said to extend from 30Hz to 20kHz (-3dB).
So, how does a single soundbar—even such a large one—simulate the effect of a 5.1.4 speaker system? In this case, it uses all those drivers and some serious DSP to direct the surround and overhead channels to the room’s walls and ceiling, where they are reflected toward the listening area. According to Sennheiser, the effect is best if the walls and ceiling are no more than five meters (about 16 feet) from the soundbar; otherwise, the reflected sound might be noticeably delayed.
To accomplish this feat of virtualization, the Ambeo Soundbar must be calibrated to the room in which it will be used. In addition to the soundbar itself, the package includes a 28-inch-tall, free-standing calibration microphone attached to its own heavy base and a long cable that connects to the front of the soundbar. To calibrate the unit, you place the mic so its top is at ear height in the listening position and hold the Ambeo button on the remote or the top of the unit. The soundbar plays a series of sweeping tones and then calibrates the DSP based on what the microphone picks up from reflections in the room.
Physical inputs on the back include three HDMI 2.0a ports (18Gbps), one ethernet port, one Toslink optical port, and one pair of RCA analog-audio jacks as well as a 2.5mm microphone input on the front for the calibration mic. It also provides several wireless inputs, including Bluetooth 4.2 and dual-band Wi-Fi (802.11a/b/g/n/ac). Finally, it has Google Chromecast built in, and it can join a UPnP media network. Outputs include one HDMI 2.1 port with eARC and a subwoofer pre-out with an RCA connector. A USB port supports service and firmware updates but not media playback from storage devices.
The Ambeo Soundbar can decode a wide range of audio codecs, including virtually all varieties of Dolby (including Dolby Atmos) and DTS (including DTS:X and DTS 96/24). Other supported codecs include DSD (the format used with SACD discs) and MPEG-H, a relatively new codec intended for use with next-generation TV broadcasting via ATSC 3.0. It can also upmix stereo and 5.1 content into a fully immersive soundfield.
You can engage the Ambeo virtualization with three intensity levels (Light, Standard, Boost), and you can cut or boost four bands of EQ by up to ±10dB. Of course, you can disable it altogether as well. The soundbar also offers five preset sound modes: Movie, Music, News, Sports, and Neutral. In addition, it offers a Night mode that compresses the dynamic range so you can hear everything without having to crank it up and possibly disturb others trying to sleep in the next room.
If the audio is in one of the Dolby formats, the Ambeo Soundbar can utilize Dolby Virtualizer, in which case the Ambeo 3D audio effect is disabled. It also offers Dolby Dynamic Range Control (DRC) with three different settings (Auto, Normal, Heavy) and dialog normalization. If the audio is a DTS bitstream, you can set DRC to any value from 0 to 100 percent and boost dialog up to 6dB. These and most other controls are found in the Sennheiser Smart Control app (more in a moment).
Of course, you can place the soundbar on a credenza or other surface, and it comes with protective feet you can install if you wish. You can also wall-mount it with an optional hardware kit. Keep in mind, however, that it’s five inches tall, so the bottom of the TV needs to be at least that far above the surface where the soundbar sits.
Ambeo user interface
The front of the soundbar sports an OLED display with an ambient-light sensor and status LED in the center. An LED-illuminated Ambeo badge on the right-hand side of the cabinet lights up when the virtualization is engaged. Fortunately, you can control the brightness of the display and Ambeo indicator using the Smart Control app.
On the top of the soundbar are a few basic control buttons, including power on/off, source selection, Ambeo on/off, volume up/down, and mute. A multifunction button lets you control playback of music files—press once to play or pause, press twice to skip to the next track, press three times to skip to the previous track. Pressing the multifunction and source buttons together for two seconds puts the soundbar in Bluetooth-pairing mode. If the device supports NFC pairing, you can simply hold the device close to the NFC logo on the soundbar and they will pair automatically.
The slender remote is blessedly simple, with only 14 well-separated buttons. Naturally, there are buttons for power on/off button, Ambeo on/off, and mute on/off as well as the same multifunction button as found on the unit itself. The source up/down and volume up/down buttons are slightly contoured (up is convex, down is concave), making them very easy to find by feel. The five sound modes and night mode have their own dedicated buttons, which is great, though they all feel the same, and without illumination, you have to memorize where they are to change modes in the dark.
As you might expect, Sennheiser’s Smart Control app offers the most control options. Of course, you can power the soundbar on and off, control the volume, select inputs and sound modes, and engage and disengage the Ambeo effect and Night mode. In addition, the app lets you select the strength of the Ambeo effect and adjust the 4-band EQ as well as rename the inputs. You can also control the brightness of the display and Ambeo LED manually or set it to automatically adjust according to the amount of ambient light in the room. As mentioned earlier, the Dolby and DTS DRC and dialog controls are available in the app as well. Even better, you can specify that your settings are remembered for each input as well as whether or not the soundbar plays audible cues for various actions.
Overall, the app is designed quite well. The basic controls are found on the home screen, while the Ambeo strength and EQ controls are two levels into the Acoustical Settings; they can be adjusted and saved separately for each sound mode, which is very nice. All other controls are found in the Device Settings, which are organized fairly intuitively.
I placed the Ambeo Soundbar on a small table in front of my Sony 65A1E OLED TV; fortunately, the table is just low enough so the soundbar didn’t block any of the screen when I was seated in my normal chair. The room is almost entirely rectangular with standard drywall, though there is an open closet to the right of the seating area, and one of the equipment racks is against the wall next to the closet. There are some shelves of Blu-rays to the left of the seating area.
Next, I set up the calibration microphone at ear height in my chair, connected it to the soundbar, and ran the calibration routine. It plays a set of sweeping test tones, after which the DSP processes those measurements. As I listened to the sweeps, I was particularly impressed with the low-frequency output.
Unfortunately, the calibration failed, even after repeated attempts. A Sennheiser rep suggested that I cycle the AC power by unplugging the unit for 15 minutes, then plugging it back in and trying again. Sadly, that didn’t work, so they sent me another calibration microphone, which worked the first time.
I connected three source devices to the HDMI inputs—a Dish Hopper 3 satellite receiver, a Roku Ultra 4K streamer, and an Oppo UDP-203 UHD Blu-ray player—using 18Gbps cables. I also connected the soundbar’s HDMI output to the calibrated HDMI input on the TV.
Each time I turned on the soundbar, it switched to the HDMI TV (eARC) input. Unfortunately, I can find no control in the app that lets you specify which input it should select at power up. According to Sennheiser, the soundbar should automatically select the most recent active input, but even when I powered up one of the source devices last, the soundbar’s input remained on HDMI TV, so I had to manually switch to the desired input every time. I wish the app included a setting that lets you specify something like “stay on the input selected at last power down” or “always select HDMI X when powering up.”
Another operational problem was that the app lost its connection to the soundbar after my phone went to sleep. When I woke it up and went to the app, it was no longer connected, and I had to manually reconnect, which got tiresome after a while.
I started my formal evaluation by playing the 5.1.4 test tones—pink noise, actually—from the Dolby Atmos demo Blu-ray. Of course, the front LCR channels came from where they were supposed to, but the surround and overhead channels were also in front of me. The surround channels were farther to the sides than the front LR channels, but they didn’t appear to come from the sides of the room. The overhead channels appeared to be coming from the upfiring speakers in the soundbar, not from the ceiling.
The helicopter and 747 takeoff demos from the Dolby Atmos disc sounded about the same—entirely in front of me with some width and height in the soundstage. The rainstorm demo, however, was much more effective; the sound of the rain actually appeared to be coming from overhead, especially the higher frequencies.
I compared the Ambeo effect with Dolby Virtualization during the rainstorm demo, and found that Ambeo was much more effective. Dolby Virtualization rendered the sound more in the front of the room with a somewhat smaller soundstage.
Next, I played some of the short Atmos demos with video. In all cases, overhead sounds with high frequencies appeared to come from overhead, and the width of the soundstage was very good, though I heard nothing from where actual surround speakers would be. The Horizon demo includes a plane flying over from back to front, but the entire sound came from the front. On the plus side, low frequencies were particularly impressive.
Of the musical selections on the demo disc, I especially like the Atmos mix of “Bailando” by Enrique Inglesias. As rendered by the Ambeo Soundbar, the soundstage was quite wide with some overhead high-frequency sounds, and the bass sounded great. Likewise, the soundstage on Cappella SF’s recording of “Dance,” from Invocation and Dance by David Conte, extended well beyond the soundbar’s physical cabinet with some high-frequency percussion overhead but not as far as the sides of the room next to me.
During the musical selections, I tried the different sound modes. The Music mode emphasized the bass more than the others and sounded a bit congested. Movie mode was richer than Neutral, and both were cleaner than Music mode. In addition, I tried listening with the Ambeo effect turned on and off. Turning it off greatly shrinks the soundstage and thins out the sound quite a bit.
Turning to movies, I watched several movie clips in DTS:X with the Movie mode selected. In all cases, the soundstage was wide and tall in the front of the room with some high-frequency sounds overhead, excellent bass, and a few moments with sounds from farther out to the sides than I’d heard before. In particular, in a clip from Despicable Me 3, Gru and Dru steal a large diamond from bad guy Balthazar Bratt. They are falling to their doom when Lucy snags them from a helicopter and then flies off across the left of the room. For that one moment, I heard the helicopter on the left side of the room.
My wife and I also watched some TV with the Ambeo Soundbar. In most cases, the News mode worked best to bring out dialog. This was especially important with Jeopardy!, one of our regular favorites. We could understand host Alex Trebek and the contestants much better in News mode than any of the others. I didn’t feel a need to boost the mid-range or high EQ in that mode, though I’m sure it would have helped in the Neutral mode.
Finally, I listened to some music via Bluetooth from Tidal’s Master library. My selections included “Falling Slowly” by Josh Groban and Idina Menzel, from Groban’s album Bridges Live: Madison Square Garden; “Everything’s Right,” from Phish’s album Sigma Oasis; “My Blue Heaven,” sung by James Taylor on his album American Standard; and Wagner’s Siegfried Idyll, as recorded by the Philharmonia Orchestra under Guido Cantelli with horn soloist Dennis Brain, one of my favorite horn players of all time.
In all cases, Music mode sounded a bit thick with slightly muddy bass, while Movie mode sounded clearer, and Neutral mode was, well, neutral—cleaner and more transparent than the other modes. Once I settled on Neutral mode, the sound quality was excellent overall, with clear vocals, airy highs, clean mids, and well-balanced bass. When I turned off the Ambeo effect, the soundstage shrank dramatically, and the sound thinned out, so I turned it back on and left it there.
Is the Ambeo’s high price tag justified?
In some ways, the Sennheiser Ambeo Soundbar is a stunning achievement. It renders a wide and tall soundstage that extends well beyond the physical cabinet. The bass performance is far better than any other soundbar without a separate subwoofer I’ve ever heard, and it renders clean, clear mids and highs. Speaking of which, high frequencies in the overhead channels rained down on me quite effectively.
On the other hand, mids and lows in the overhead channels did not appear to come from overhead, and I rarely heard anything far into the sides of the room. I’m sure that was at least partly due to the open closet and equipment rack on the right and shelves of Blu-rays on the left, which undoubtedly interfered with the reflections. I imagine the effect would be more pronounced in a room without any breaks in the walls. But how many rooms have an unbroken, reflective, purely rectangular shape? Not many in real life, I suspect.
Then there’s the price: nearly $2,500! That makes the Ambeo the second most expensive soundbar I know of. The most expensive is the Creative Technology X-Fi Sonic Carrier at nearly $4,000, reviewed here, which includes a separate wireless subwoofer and claims to create an immersive soundfield like the Ambeo. As TechHive editor Michael Brown wrote in his review of that soundbar, “It never fooled my ears into believing sound was coming from anywhere other than the front of my home theater.”
I have to say the same thing about Sennheiser’s Ambeo Soundbar. The overall sound quality is superb—this is the best soundbar I’ve spent any time with—and it does a great job of expanding the soundfield well beyond its physical cabinet. But almost all of that soundfield is still in the front of the room. It might be more immersive in a perfect room, but for most real-world rooms, I don’t expect much more 3D sound than what I heard.
If you want a true surround or immersive audio system, and you can spend this kind of money on it, I recommend getting a set of speakers and an A/V receiver. To stay close to a total cost of $2,500, for example, you can assemble a 5.1.2 speaker system from SVS consisting of two Prime Bookshelf speakers for the front left and right, a Prime Center, two Prime Satellites for the surrounds, two Prime Elevation speakers (reviewed here) for the overhead channels, and a PB-1000 subwoofer, all for about $1,900. You also need a 7.2-channel Dolby Atmos-capable A/V receiver, such as the Denon AVR-X1600X ($600), which provides twice as many HDMI inputs as the Ambeo Soundbar. Granted, this system is 5.1.2, not 5.1.4, but I didn’t really hear four overhead channels with the Ambeo anyway.
Of course, such a system is a lot more complicated to set up, so if that’s an important factor for you, the Sennheiser Ambeo Soundbar is a good alternative. Just don’t expect a fully immersive soundfield.
